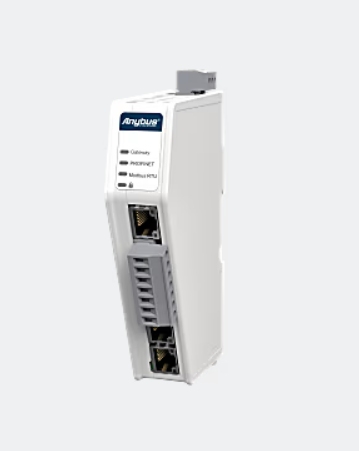

Anybus Communicator – Modbus RTU Server to PROFINET IO Device (ABC4027-A)

Features and benefits

• Transfer 1500 bytes to and from Modbus RTU controller (PLC)

  Transfer up to 1500 bytes in each direction (3000 bytes total) via RS232/RS485 interfaces with baud rates up to 128,000 bit/s. Modbus RTU Server (slave) supporting Modbus diagnostics and device identification.

• Transfer 1024 bytes to and from PROFINET controller (PLC)

  Transfer up to 1024 bytes in each direction (2048 total) via dual 10/100 Mbit full duplex RJ45 ports with an integrated switch for daisy-chaining. PROFINET IO-Device, 1 ms minimum cycle time, Conformance Class B, Netload Class III, and includes a GSD file.

• Instant data transfer

  The Communicator transfers data instantly between networks, with processing time so low you don’t even need to count it, as it’s in line with network jitter. Just add the cycle times of both networks to get the total transfer time.

• Configure via web interface over Ethernet

  With a graphical and responsive web interface, configuration is a breeze. In addition, there’s no software to install and the dedicated Ethernet configuration port makes it easy to get started.

• Diagnostics and support

  The user interface shows connection status, allowing you to monitor the data going through the gateway. Monitor and control offline behavior via the Status Byte and Clear Data features. Our global support team is ready to help if needed.

• Drop-in replacement

  Already using an X-gateway? Don’t worry, with legacy mode you can continue using the same device description file in your controller/PLC.

• Secure and segment networks

  Secure boot blocks malware, while a security switch locks configurations to prevent unauthorized changes. Network segmentation is inherent in the design, as each network is run separately, with only configured data transferred between networks.

• Built for factory floors

  The Gateway is made with industrial-grade components, verified to meet industry standards, and backed by a 5-year warranty. Its slim form factor, front-facing ports, and cable tie make DIN-rail installation easy.

Anybus Communicator Modbus RTU Server to PROFINET IO Device
